DC RECTANGULAR ELECTROMAGNETS

rectangular electromagnet 36 cablerectangle electromagnet 24 leadRadial pole, flat surface.

Best in holding applications.

 Maximum holding at no gap.

 Continuous duty cycle.

 Max. Ambient temp 40°C (100°F)

12 Volts DC Rectangular & Square Electromagnets:

Part Number

Holding Value

Width

Length

Height

Hole Spacing

Mounting Thread

Thread Depth

Lead Length

Watts

Amps

Net Weight

List Price

12 V. DC

0" gap

A

B

C

D

E

F









Bulk Orders? International Shipping?

S-151512-12

100 lbs.

1-1/2”

1-1/2”

1-1/4”

N/A

10-32

3/8”

24” leads

8

0.67

10 oz.

$60

S-251512-12

160 lbs.

1-1/2”

2-1/2”

1-1/4”

1”

10-32

3/8”

24” leads

10

0.83

1 ls.

$69

S-252515-12

300 lbs.

2-1/2”

2-1/2”

1-1/2”

N/A

1/4-20

1/2”

36” cable

14

1.2

2 lbs.

$75

S-452518-12

600 lbs.

2-1/2”

4-1/2”

1-7/8”

2”

1/4-20

3/4”

36” cable

29

2.4

5 lbs.

$144

S-353520-12

700 lbs.

3-1/2”

3-1/2”

2”

N/A

3/8-16

3/4”

36” cable

28

2.3

5 lbs.

$130

S-603020-12

900 lbs.

3”

6”

2”

3”

3/8-16

1”

36” cable

33

2.7

10 lbs.

$206

S-804025-12

1700 lbs.

4”

8”

2-1/2”

4”

3/8-16

1”

36” cable

58

4.8

18 lbs.

$324

Call or email us


24 Volts DC Rectangular & Square Electromagnets:

Part Number

Holding Value

Width

Length

Height

Hole Spacing

Mounting Thread

Thread Depth

Lead Length

Watts

Amps

Net Weight

List Price

24 V. DC

0" gap

A

B

C

D

E

F









Bulk Orders? International Shipping?

S-151512-24

100 lbs.

1-1/2”

1-1/2”

1-1/4”

N/A

10-32

3/8”

24” leads

8

0.33

10 oz.

$60

S-251512-24

160 lbs.

1-1/2”

2-1/2”

1-1/4”

1”

10-32

3/8”

24” leads

10

0.41

1 lb.

$69

S-252512-24

280 lbs.

2-1/2”

2-1/2”

1-1/4”

N/A

7/16-20

1/2”

36” cable

15

0.55

2 lbs.

$72

S-252515-24

300 lbs.

2-1/2”

2-1/2”

1-1/2”

N/A

1/4-20

1/2”

36” cable

14

0.58

2 lbs.

$75

S-452518-24

600 lbs.

2-1/2”

4-1/2”

1-7/8”

2”

1/4-20

3/4”

36” cable

29

1.2

5 lbs.

$144

S-353520-24

700 lbs.

3-1/2”

3-1/2”

2”

N/A

3/8-16

3/4”

36” cable

28

1.2

5 lbs.

$130

S-603020-24

900 lbs.

3”

6”

2”

3”

3/8-16

1”

36” cable

33

1.3

10 lbs.

$206

S-804025-24

1700 lbs.

4”

8”

2-1/2”

4”

3/8-16

1”

36” cable

58

2.4

18 lbs.

$324

Call or email us


110 Volts DC Rectangular & Square Electromagnets:

Part Number

Holding Value

Width

Length

Height

Hole Spacing

Mounting Thread

Thread Depth

Lead Length

Watts

Amps

Net Weight

List Price

110 V. DC

0" gap

A

B

C

D

E

F









 Bulk Orders?

International Shipping?

S-251512-110

160 lbs.

1-1/2”

2-1/2”

1-1/4”

1”

10-32

3/8”

36” cable

10

0.09

1 lb.

$85

S-252515-110

300 lbs.

2-1/2”

2-1/2”

1-1/2”

N/A

1/4-20

1/2”

36” cable

14

0.13

2 lbs.

$93

S-452518-110

600 lbs.

2-1/2”

4-1/2”

1-7/8”

2”

1/4-20

3/4”

36” cable

29

0.26

5 lbs.

$174

S-353520-110

700 lbs.

3-1/2”

3-1/2”

2”

N/A

3/8-16

3/4”

36” cable

28

0.25

5 lbs.

$157

S-603020-110

900 lbs.

3”

6”

2”

3”

3/8-16

1”

36” cable

33

0.30

10 lbs.

$229

S-804025-110

1700 lbs.

4"

8”

2-1/2”

4”

3/8-16

1”

36” cable

58

0.53

18 lbs.

$350

Call or email us


220 Volts DC Rectangular & Square Electromagnets:

Part Number

Holding Value

Width

Length

Height

Hole Spacing

Mounting Thread

Thread Depth

Lead Length

Watts

Amps

Net Weight

List Price

220 V. DC

0" gap

A

B

C

D

E

F









 Bulk Orders?

International Shipping?

S-252515-220

300 lbs.

2-1/2”

2-1/2”

1-1/2”

N/A

1/4-20

1/2”

36” cable

14

0.07

2 lbs.

$100

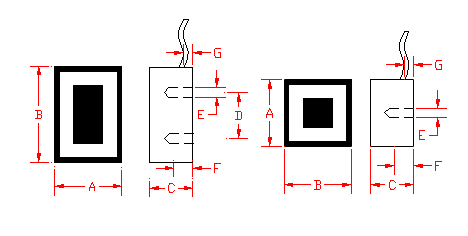

Dimensional Drawing:


Custom Rectangular & Square Electromagnets:

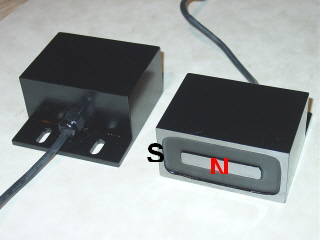

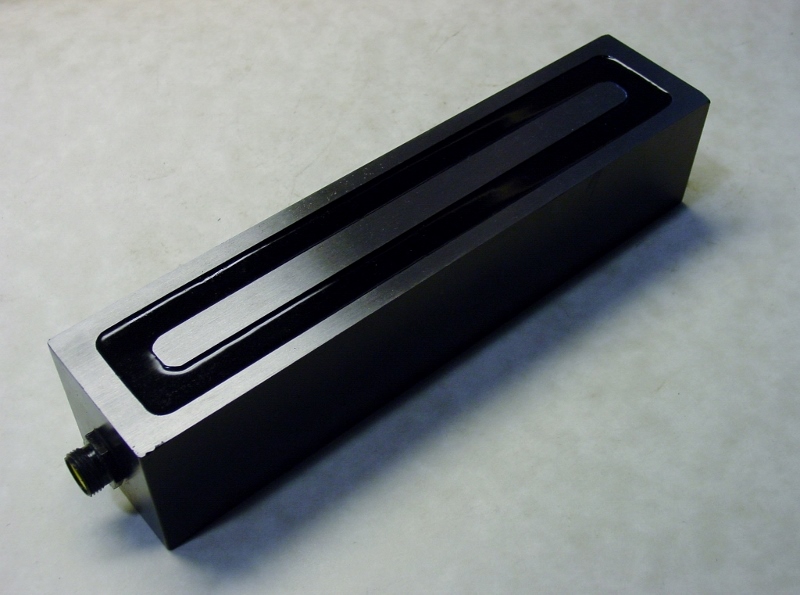

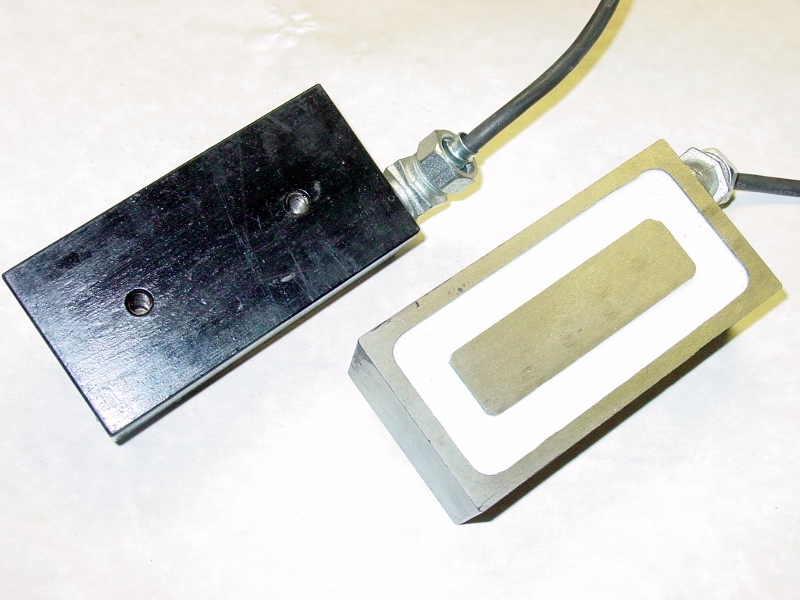

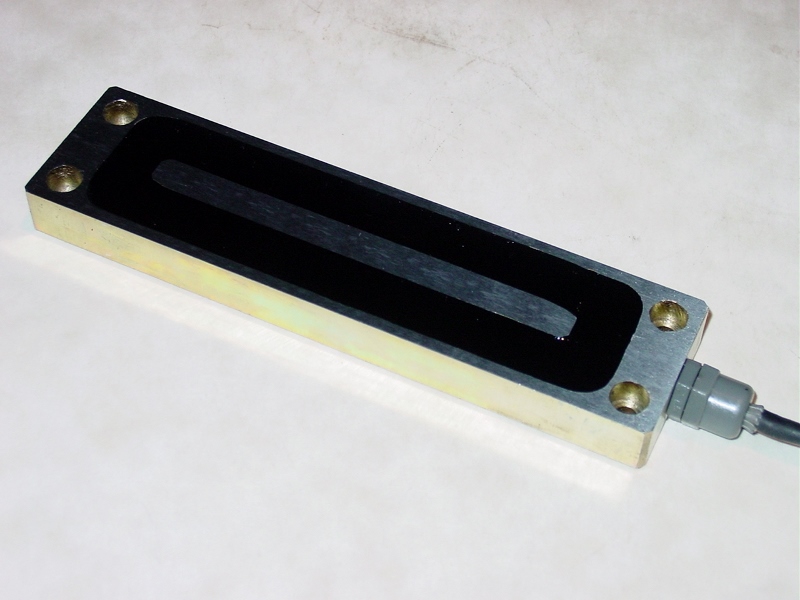

Custom products were those we had designed and manufactured in the past. We can make similar products per custom specs, however cannot provide specs on displayed units. Those are not in stock.


Safety Caution:

The holding values as listed are actual readings of breaking away a 1/2" steel plate with no air-gaps between them. They have not been de-rated. For safety in holding applications, do not use electromagnets at more than 1/2 of rated value. In lifting applications, do not use at more than 1/4 of rated value. Do not use electromagnets over people.
